Diagrams
Interactive architecture diagrams with React Flow canvas
Diagrams are the core visualization tool in Archflow. Each diagram provides an interactive canvas where you can arrange systems, draw connections, and create clear views of your architecture.
Overview
Archflow diagrams use React Flow to provide a smooth, interactive canvas experience:
- Drag and drop systems onto the canvas
- Smart edge routing keeps connection lines clean and readable
- Zoom and pan to navigate large architectures
- Auto-layout options for quick arrangement
- Multiple views per project for different perspectives
View Tabs
Each diagram view has multiple tabs accessible from the view page:
| Tab | Description |
|---|---|
| Editor | The main canvas for arranging systems and connections |
| Workflows | Select and manage business workflows linked to this view |
| Infrastructure | C4 deployment canvas for modeling infrastructure |
| Documentation | Generate, edit, and publish AI-powered documentation |
| Preview | Preview published documentation as readers will see it |
See the Diagram Editor page for detailed information about the canvas interface.
Diagram Types
Following the C4 model, you can create different levels of diagrams:
Context Diagrams
Show your software system in the context of its environment --- the users, external systems, and integrations it interacts with.
Container Diagrams
Zoom into a software system to show its internal containers: web applications, APIs, databases, message queues, and other runtime components.
Component Diagrams
Further decompose a container into its internal components, showing how they interact to fulfill the container's responsibilities.
Overview Diagrams
A special read-only diagram type that renders an auto-layout Exploration Canvas showing your entire architecture at a glance. Overview diagrams are useful for stakeholder presentations and quick orientation. They use automatic layout algorithms (via Elkjs) so you don't need to manually position anything.
Canvas Features
Node Positioning
Systems placed on the canvas can be freely positioned. Archflow saves exact positions so your layout is preserved across sessions.
Edge Routing
Connections between systems use intelligent edge routing with magic positioning that:
- Automatically calculates optimal anchor points based on relative node positions
- Avoids overlapping with system nodes
- Supports curved and straight line styles
- Updates dynamically when you move systems
Selection and Editing
Click any system or connection to view and edit its details in a side panel. Multi-select with shift-click to move groups of elements together.
Viewport State
Your zoom level and pan position are saved with each diagram, so you return to exactly where you left off.

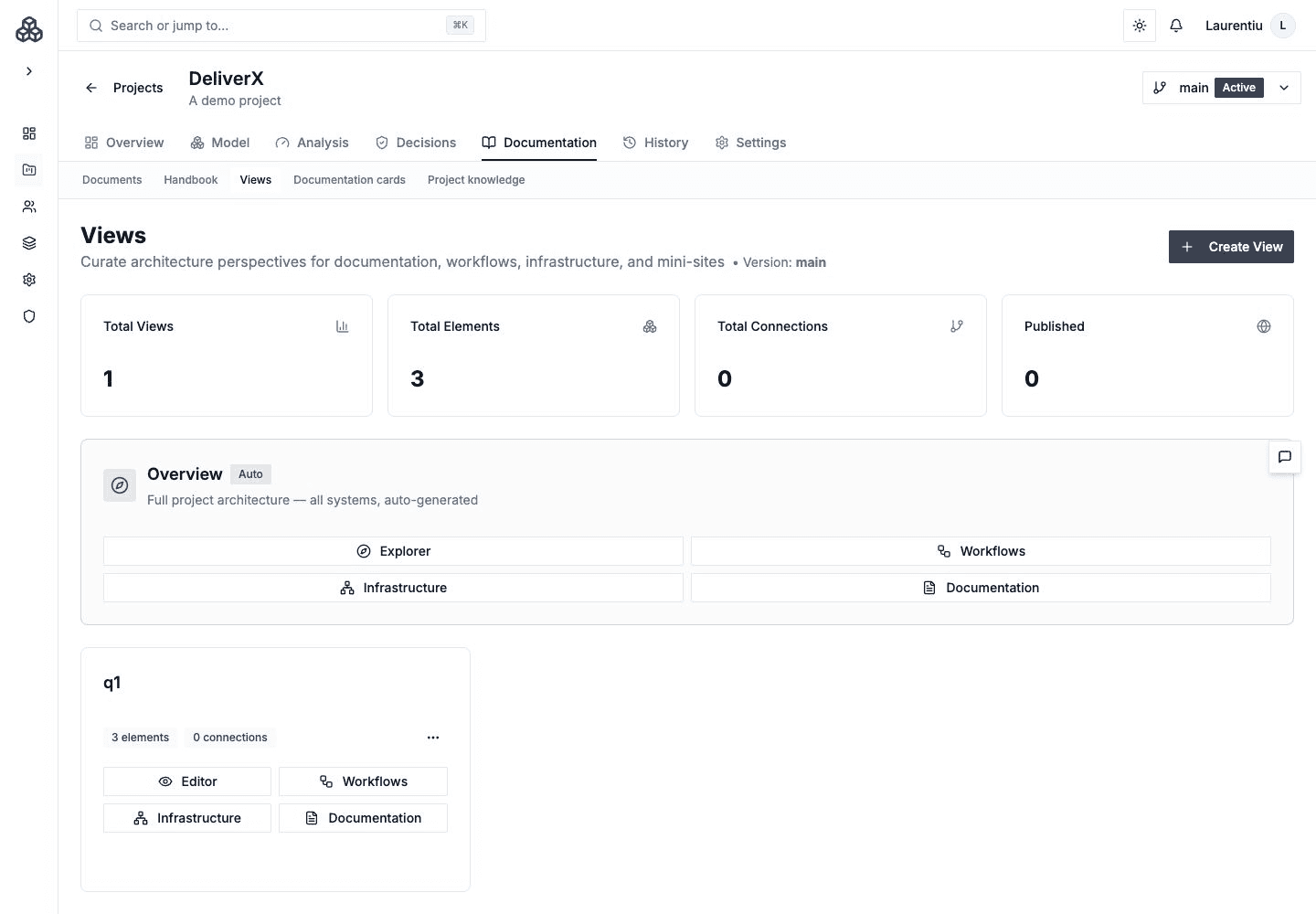

View Statistics
The Views page shows summary statistics for your project:
| Stat | Description |
|---|---|
| Total Views | Number of diagram views in the project |
| Total Elements | Systems placed across all views |
| Total Connections | Connections visible across views |
| Published | Views with published documentation |
Working with Diagrams
Creating a Diagram
From the Views page in your project sidebar, click Create Diagram and provide a name. Each diagram is an independent view of your project's systems and connections.
Adding Systems to a Diagram
Systems exist at the project level and can appear in multiple diagrams. On the Editor canvas, click Add to View to open the system panel, then select systems to place on the canvas. You can also create new systems directly from the Systems page using the Add Element button.
Organizing Multiple Views
Use multiple diagrams to show different aspects of your architecture:
- A high-level context view for stakeholders
- Detailed container views for development teams
- Component views for specific subsystems
